GPON ONU Class B+ SFF 2x10 APC Pigtail SC Module

GPON ONU Class B+

Burst TX 1310nm 1.244G/ RX 1490nm 2.488G

SC/APC pigtail Connector

RoHS Compliance

Description

Gigaopto’s GTF-AGU12-20DC Class B+ GPON ONU SFF 2x10 SCAPC Pigtail transceiver module is designed for low cost P2MP FTTx applications. It can fully support the Class B+ ODN application specified by the ITU-T G.984.2 standard and ITU-T G.984.2 Amendent-2006.

The GPON ONU transceiver is packaged of small form factor 2x10 with SC APC pigtail connector.

The module consists of one 1310nm un-cooled DFB Laser, one InGaAs preamplifier and a WDM filter in a high-integrated optical sub-assembly. It transmits 1.244Gbps at 1310nm in burst mode and receives 2.488Gbps at 1490nm in continuous mode.

The module provides digital diagnostic information of its operating conditions and status, including transmitting power, laser bias current, module temperature, and supply voltage. Calibration and alarm/warning threshold data are written and stored in the internal memory (EEPROM).

Each GPON SFP transceiver module has done sampling test under most famous brands of routers, switches, servers.

Specification

Ordering Information

Features

• Single fiber bi-directional data links
• 1310nm DFB laser transmitter and 1490nm receiver
• 1.244Gbps burst mode transmission
• 2.488Gbps continuous mode receiver
• SFF 2x10 package with SC/APC pigtail Connector
• Single 3.3V power supply
• Digital diagnostic monitoring interface
• Provide TX burst mode signal detect function
• LVTTL transmitter laser fault alarm
• Low EMI and excellent ESD protection
• Class I laser safety standard IEC-60825 compliant
• RoHS6 Compliance

Application

• Gigabit Passive Optical Networks (GPON)
• FTTX

Standards

• Complies with SFP Multi-Source Agreement (MSA) SFF-8074i
• Complies with ITU-T G.984.2
• Complies with FCC 47 CFR Part 15, Class B
• Complies with FDA 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007
• Complies with SFF-8472
• Compatible with TR-NWT-000870 4.1 ESD sensitivity classification Class2.
• Compatible with Telcordia GR-468-CORE

Package Outline

For more GPON ONU SFP Transceivers, please refer to the following form

GPON ONU Transceiver Series (Data Rate TX-1.244G/RX-2.488G, Wavelength:TX1310nm/RX1490nm, Class B+, DFB+APD)

GPON Pigtail SC Module

2x10 Pigtail SC Module

sc apc Module

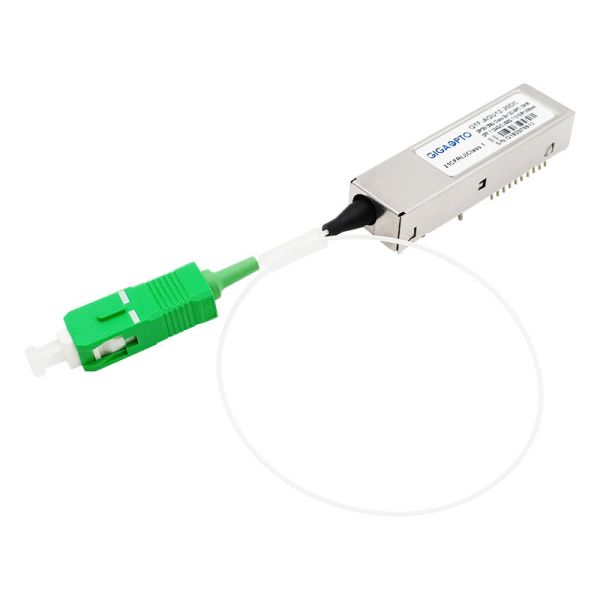

GPON ONU Class B+ SFF 2x10 APC Pigtail SC Module Images
